The Bosch PowerMore 250 Kit is the carefree package. It contains all the items you need to extend your E-bike with the PowerMore system. Simply order the matching PowerMore cable and the range extender is ready for use.

---

Scope of delivery

• 1 x PowerMore 250 Battery Range Extender
• 1 x Bosch PowerMore 250 (BBP362Y) - Battery holder
• 1 x Bosch PowerMore 250 (BBP362Y) - Bottle cage
• 1 x Bosch PowerMore 250 (BBP362Y) - Screw set

---

Bosch PowerMore 250 Battery Range Extender

The Bosch PowerMore 250 is the additional battery the size of a drinks bottle for even greater range and longer-lasting trail fun. Compact and weighing just 1.5 kilograms, the Range Extender can be easily mounted in the water bottle holder. It can be combined with all batteries of the smart system.

Features

• Convenient and safe insertion and removal
• Water bottle-sized additional battery for even more range and longer-lasting trail fun
• No memory effect and no self-discharge
• Compatible with the smart system
• Version: Frame
• Length: 200 mm

Note: Please check in advance whether you can use the range extender for your e-bike.

Product features

• Model: PowerMore 250
• Model designation: Range Extender
• Manufacturer code: EB1210005G
• System: The smart system
• Mounting type: Frame battery
• Mounting variant: Frame
• Voltage (V): 36 V
• Capacity (Ah): 6.7 Ah
• Energy content (Wh): approx. 250 Wh
• Charging cycles: 500 - 600
• Dimensions: 200 x 88 x 75 mm

Compatibility

• Bosch smart system

Range

• Calculate the range for your next eBike tour here.

Color

• black

Weight

• approx. 1.5 kg (manufacturer information)

---

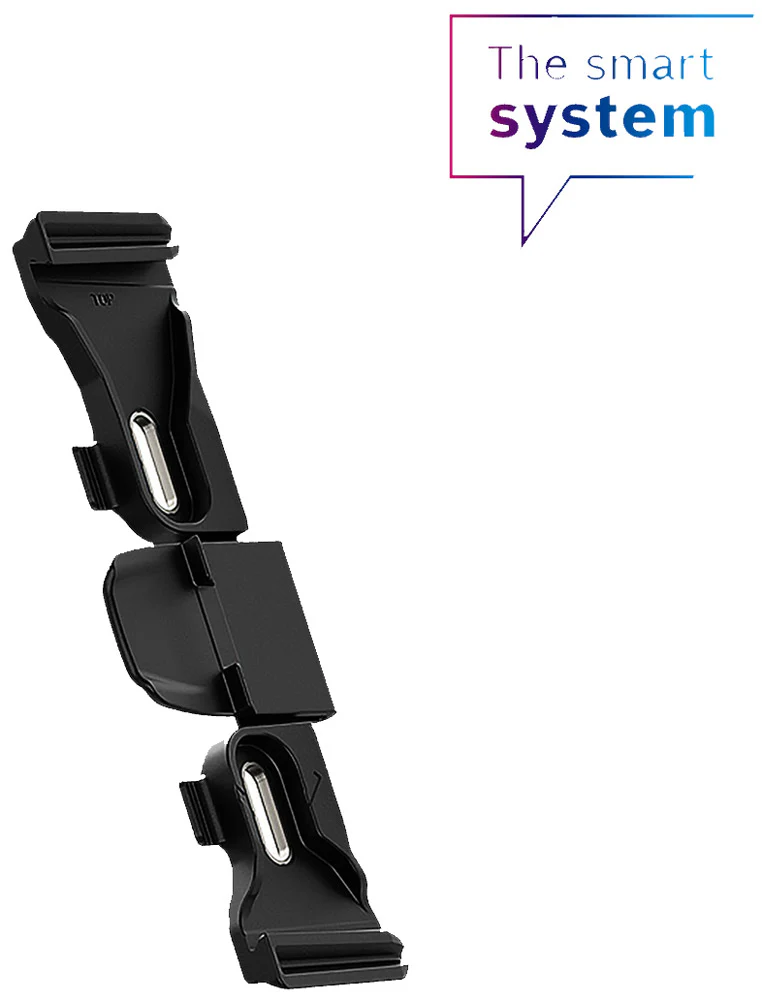

Bosch PowerMore 250 (BBP362Y) - Battery holder

The Bosch PowerMore 250 battery holder is simply mounted on the bottle cage mount of your e-bike. This is required to attach the PowerMore 250 battery.

Product features

• Suitable for Bosch PowerMore 250 battery & bottle cage
• Practical closure
• Mounting on bottle cage holder

Material

• Plastic

Color

• black

Weight

• 30 g (manufacturer information)

---

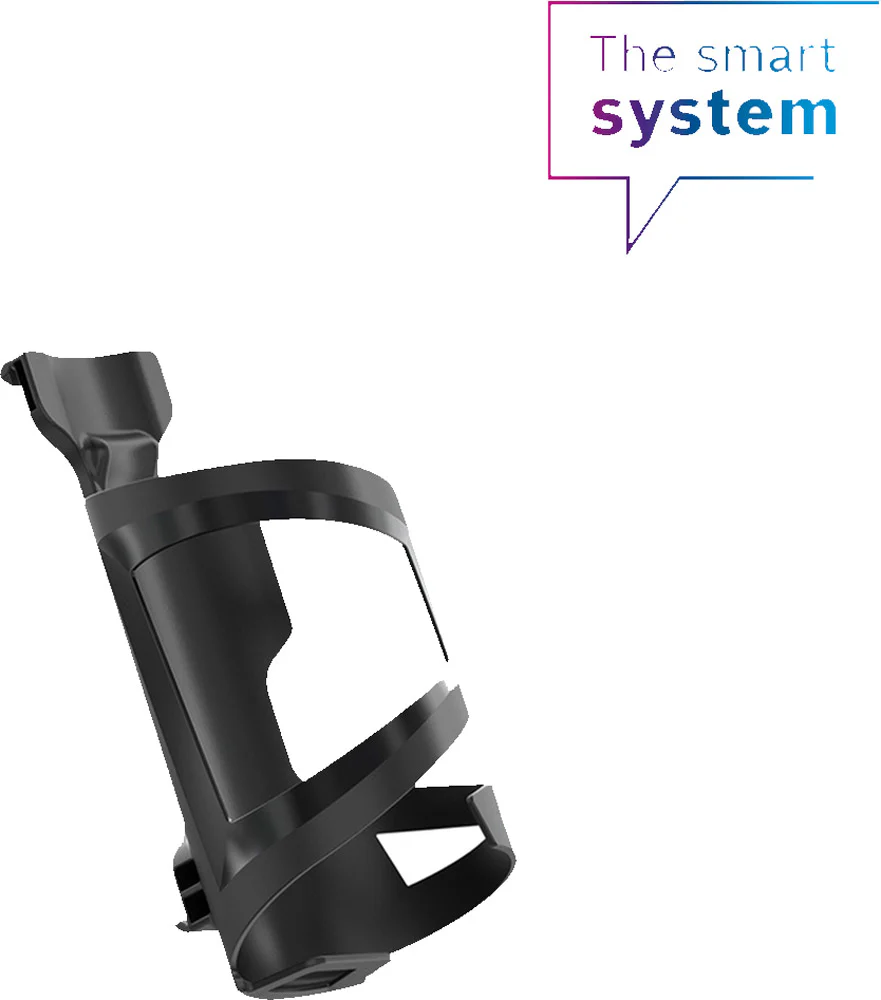

Bosch PowerMore 250 (BBP362Y) - Bottle cage

The Bosch PowerMore 250 (BBP362Y) bottle cage is simply attached to the battery holder of the PowerMore 250 Wh Range Extender. It offers space for a standard water bottle. It can also be quickly fitted and removed so that you always have the right set-up for your e-bike.

Product features

• Suitable for standard drinking bottles
• Designed for the PowerMore 250 battery holder

Material

• Plastic

Color

• black

Weight

• 70 g (manufacturer information)

---

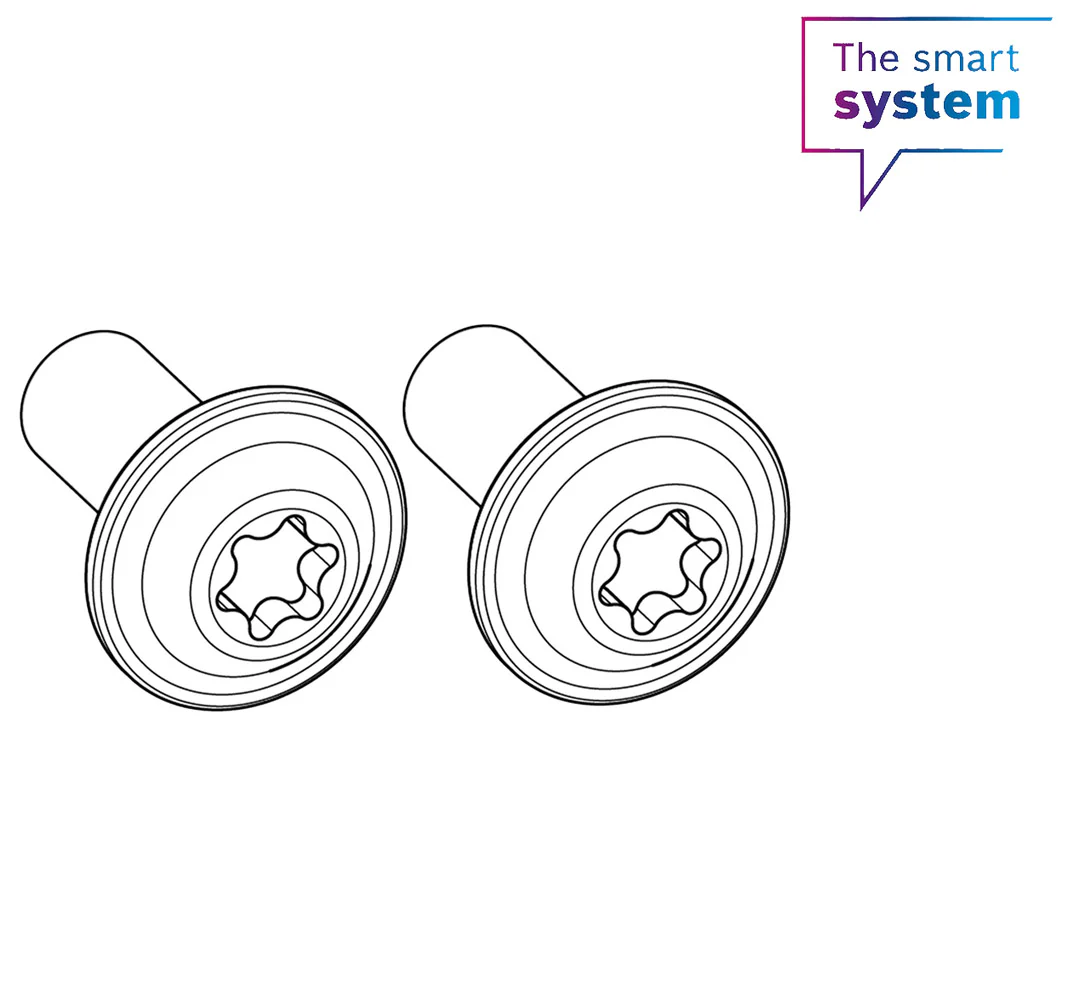

Bosch PowerMore 250 (BBP362Y) - Screw set

The Bosch PowerMore 250 screw set (M5 x 12) is required to mount the PowerMore 250 battery holder on the bottle cage mount of your e-bike. The screws are particularly sturdy to withstand the loads when the PowerMore 250 battery is fitted.

Product features

• Recommended for mounting the PowerMore 250 battery holder

Color

• black

Weight

• 6 g (manufacturer information)

---

Technologies

Charging times and service life - how quickly the energy comes back
A charge cycle refers to the full recharging of a battery in a single charging session or several partial charging sessions. The charging time depends on the capacity of the battery and of the charger: with the Standard Charger, the PowerMore 250 require approx. 1.6 hours for half a charge, and 3.7 hours to fully charge. Charging with the 4A Charger is quicker, with only 1.3 hours needed to half-charge the PowerMore 250 – the perfect solution when on the road – and only 3.2 hours to fully recharge these battery packs. The service life of Bosch rechargeable batteries is influenced mainly by the type and duration of use. Like every lithium-ion battery, a Bosch rechargeable battery also ages over time, even if you do not use it.

Factors that shorten the service life:

• Heavy use
• Storage above 30 °C ambient temperatures
• Prolonged storage in a completely full or completely empty state
• Parking the eBike in direct sunlight

Factors that have a positive effect on the service life:

• Minimal use
• Storage at a temperature between 0 and 20 °C
• Storage at approx. 30 to 60% charge status
• Parking the eBike in the shade or in cool location

---
