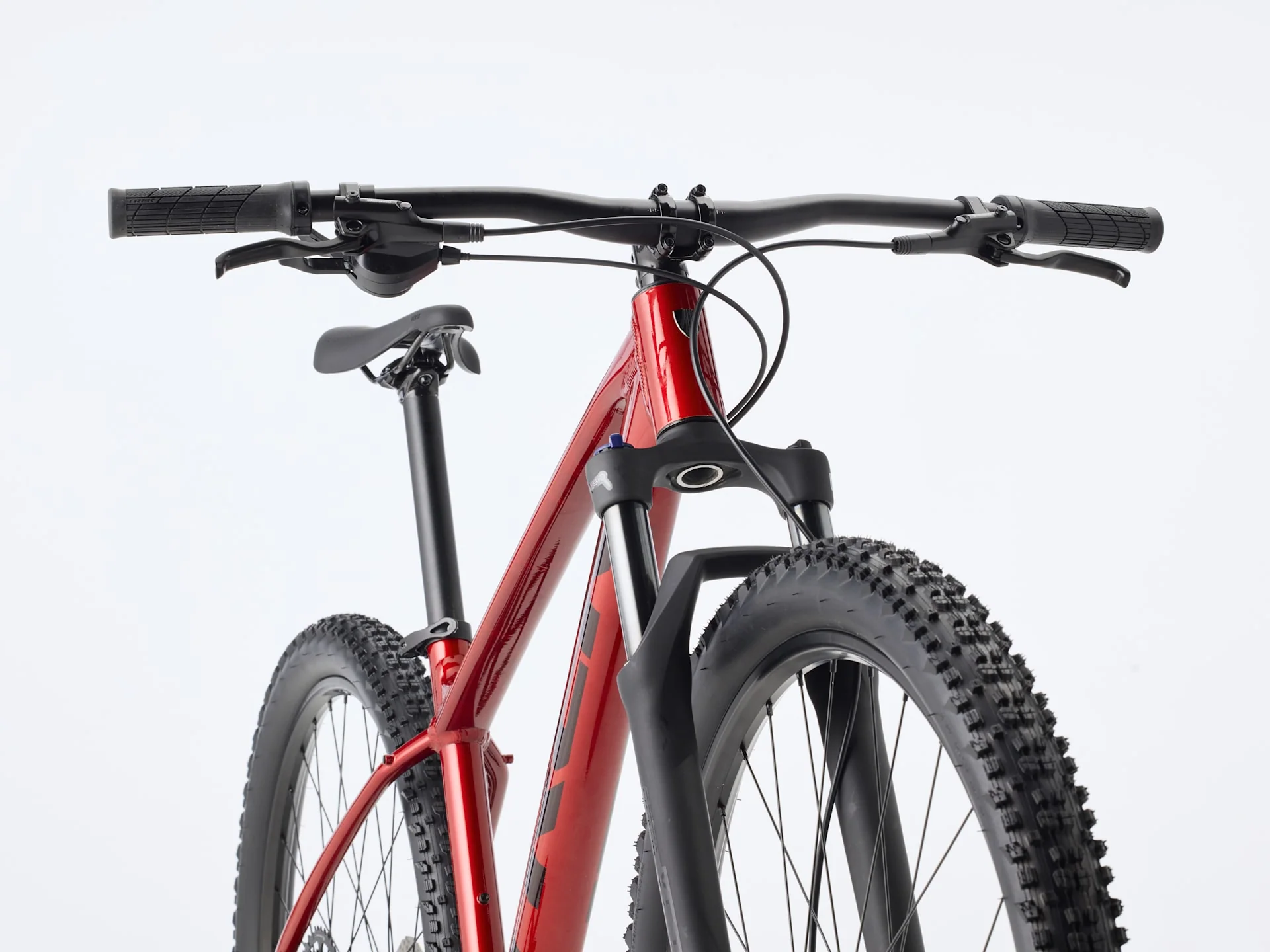

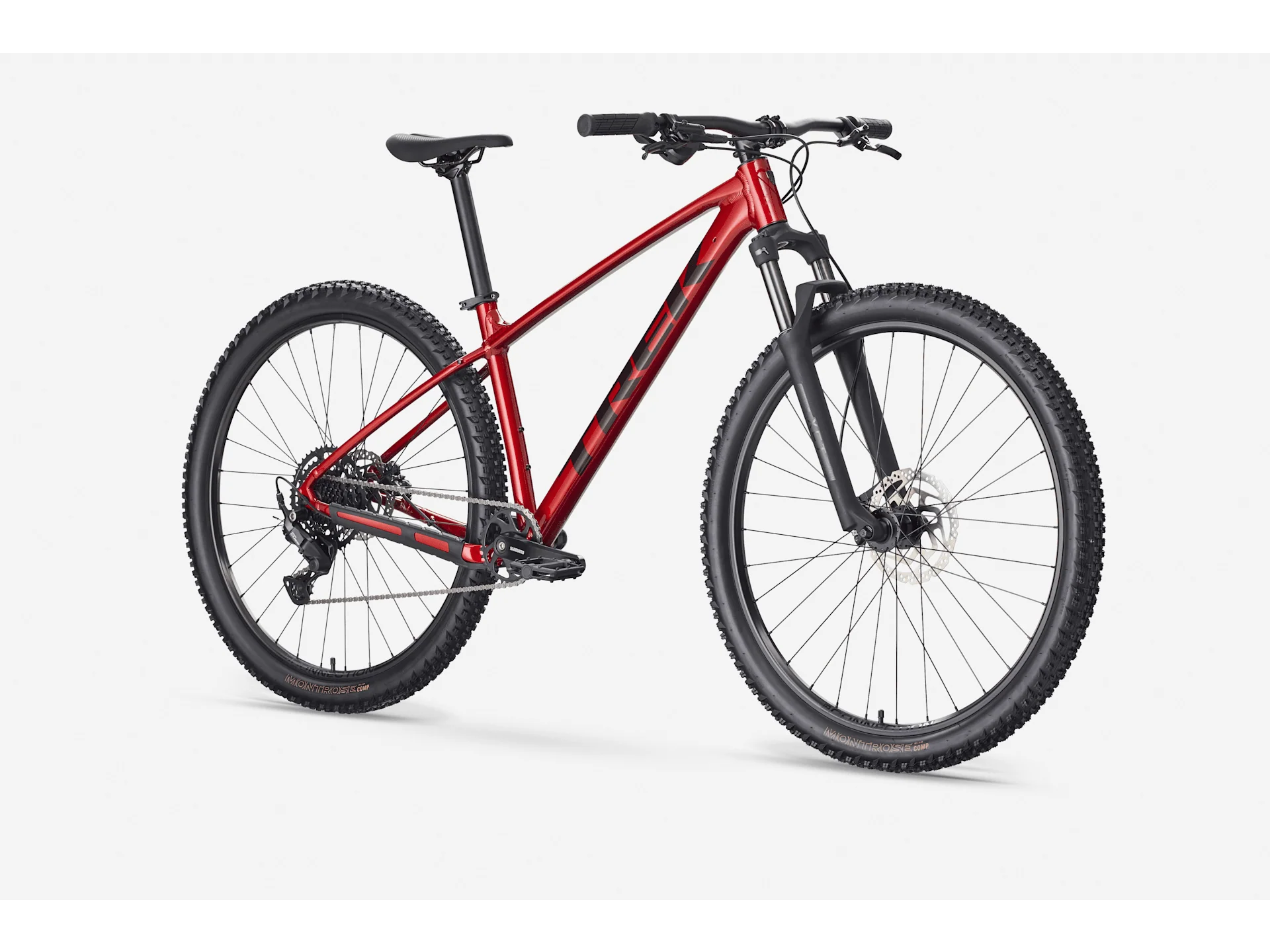

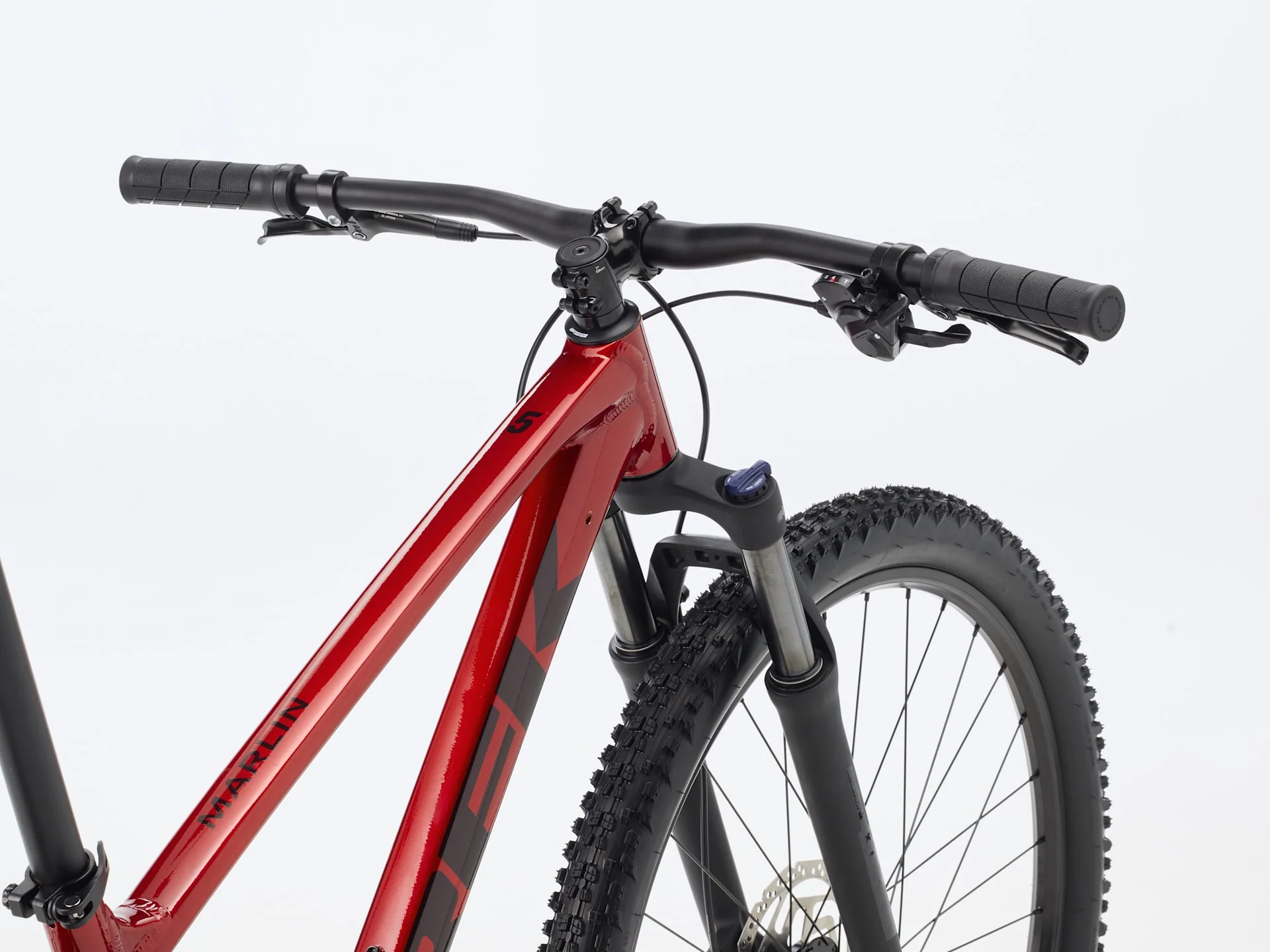

2026 Trek Marlin 5 Gen 3 - Fury Red
The 2026 Trek Marlin 5 Gen 3 in Fury Red is a capable, confidence boosting entry into real mountain biking. With its updated Gen 3 geometry, the Marlin 5 offers improved stability on descents while keeping the ride responsive and efficient on climbs. The lightweight Alpha Silver Aluminium frame includes internal cable routing, wider tyre clearance and a tapered head tube for sharper front end control.
The smooth shifting drivetrain makes changing gears easy for new riders, while hydraulic disc brakes provide reliable stopping power in both wet and dry conditions. The suspension fork softens bumps and uneven surfaces, making the bike comfortable on gravel paths, light trails or daily commutes.
Finished in a bold Fury Red paint scheme, this model stands out with a clean and modern look. The Marlin 5 Gen 3 is a strong choice for beginners, recreational riders and commuters seeking a dependable, well built bike backed by an approved online Trek store.
OVERVIEW
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
SPECS
*Please note – spec applies to all sizes unless listed separately
- *Frame
-
Size: XS

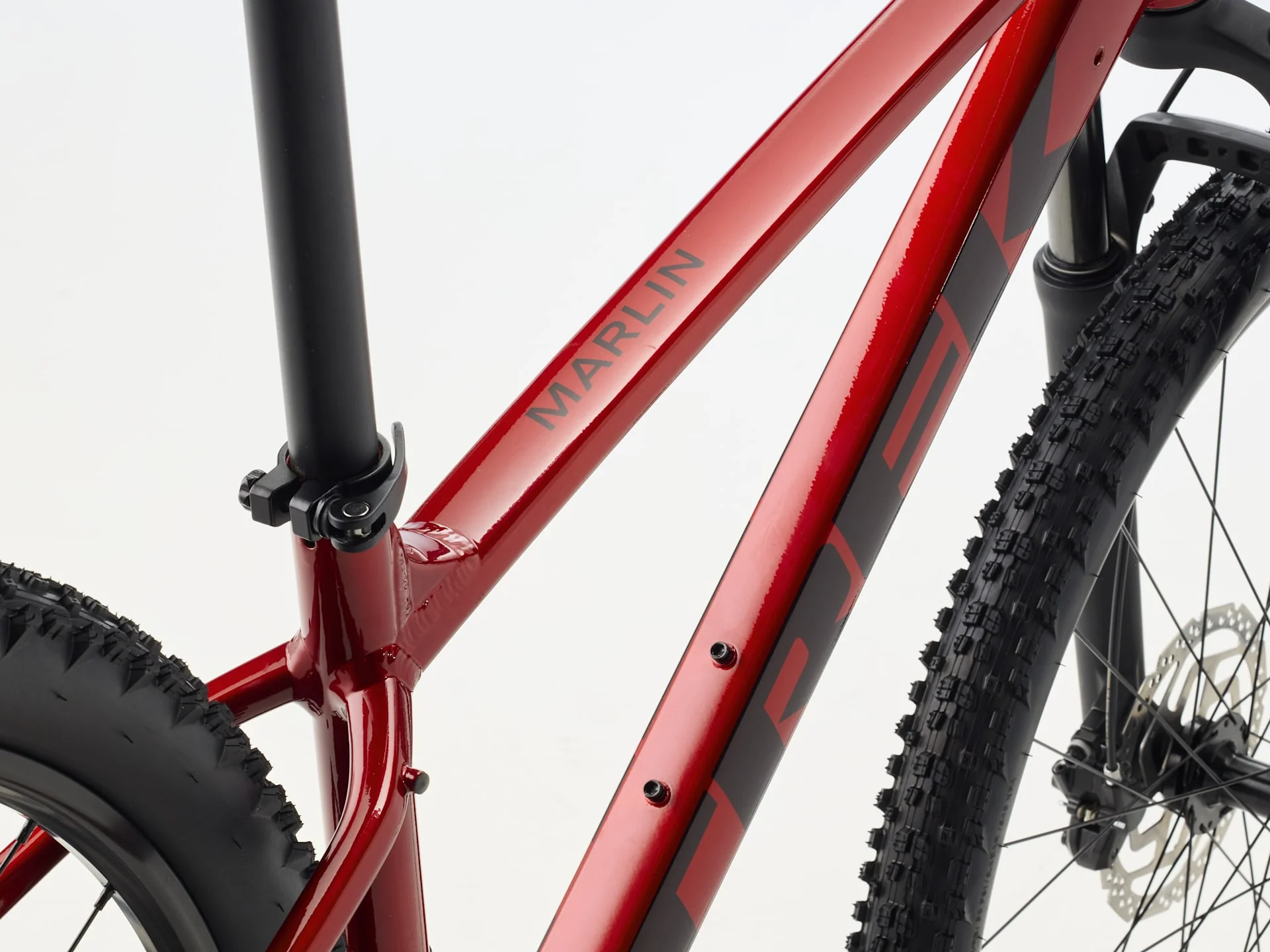

Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkewSize: ML , M , L , S , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew - *Fork
-
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travelSize: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travelSize: ML , M , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
- Hub front
-
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Skewer front
-
Trek Thru-Skew
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Skewer rear
-
173x5 mm QR
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Spokes
-
14 g stainless steel, black
- *Tyre
-
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"Size: ML , M , L , XL , XXL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"Size: ML , M , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
- Shifter
-
Shimano U4000, 9-speed
- Rear derailleur
-
Shimano CUES U4000
- *Crank
-
Size: ML , M , XS , S
Shimano CUES U4001, 32T, 52mm chain line, 170 mm lengthSize: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length - Bottom bracket
-
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
- Cassette
-
Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chain
-
Shimano LG500
- Pedal
-
VP-536 nylon platform
- Saddle
-
Bontrager Verse Short, stainless steel rails
- *Seatpost
-
Size: M , XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm lengthSize: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length - *Handlebar
-
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm widthSize: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm widthSize: ML , M , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips
-
Trek Line Comp, nylon lock-on
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm lengthSize: ML , M , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm lengthSize: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm lengthSize: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length - Head set
-
Semi-integrated, 1-1/8"
- Brake
-
Shimano MT200 hydraulic disc
- *Brake rotor
-
Size: ML , M , XS , L , S , XL , XXL
Shimano RT26, 6-bolt, 160 mmSize: ML , M , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm - Brake Set
-
Shimano MT200 hydraulic disc
- Weight
- M - 15.10 kg / 33.29 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
