2026 Trek Checkpoint ALR 5 Gen 3 - Fjord Blue to Miami Green Fade
Shop the 2026 Trek Checkpoint ALR 5 Gen 3 gravel bike for sale in South Africa at Biket — the official Trek Bikes online store. High-performance alloy gravel bike with endurance geometry and Shimano drivetrain, built for speed and comfort on rough terrain. Fast free nationwide delivery in South Africa.
OVERVIEW
The Checkpoint ALR 5 is an aluminium gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50 mm of tyre clearance gives you room for tons of grip. It comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels and loads of mounts for bags and gear.
*Please note – spec applies to all sizes unless listed separately
Please note last image is for display purposes only to show the products the bike can carry, none of these accessories are included.
- Frame
-
300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle

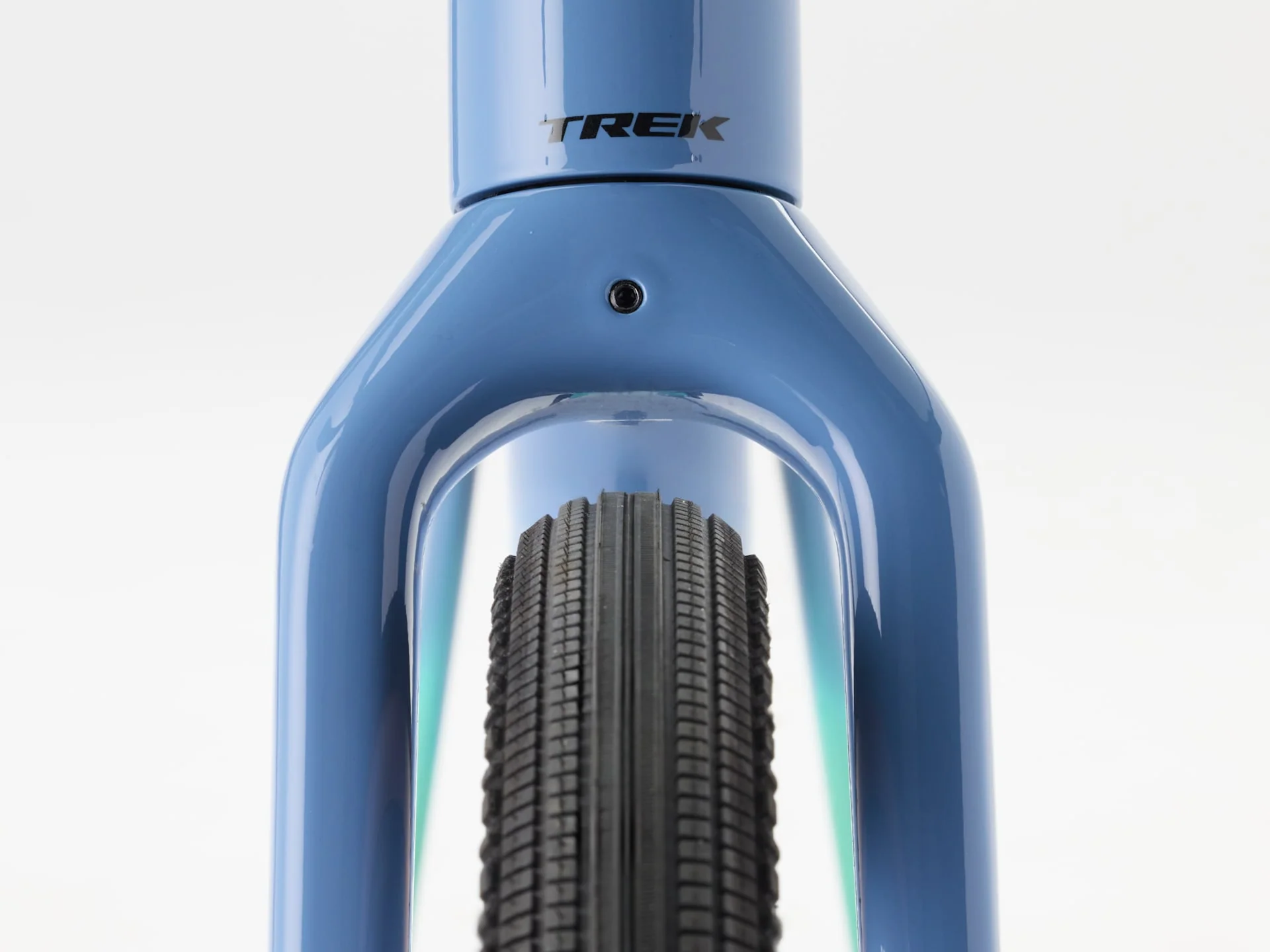

- Fork
-
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- Weight
- ML – 9.87 kg/21.76 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Shifter
-
SRAM Apex, 12 speed

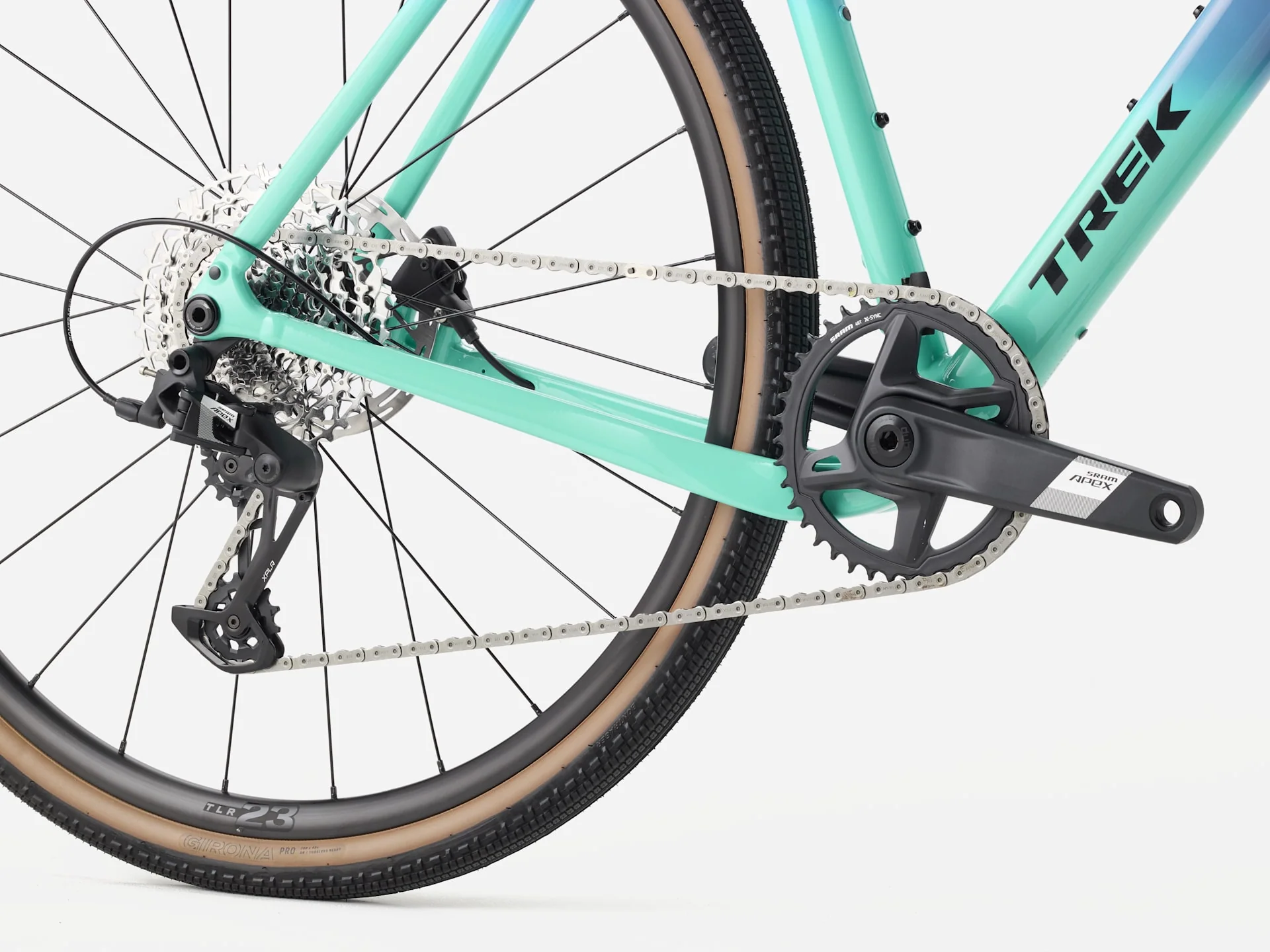

- Rear derailleur
-
SRAM Apex XPLR, 44T max cog
- *Crank
-
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165 mm lengthSize: M, ML
SRAM Apex 1, 40T, DUB Wide, 170 mm lengthSize: L, XL
SRAM Apex 1, 40T, DUB Wide, 172.5 mm length - Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM XPLR PG-1231, 11-44, 12-speed
- Chain
-
SRAM Apex, 12-speed
- Max. chainring size
- 1x:44 2x: 46/30
- Hub front
-
Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
- Skewer front
-
Bontrager Switch chamfered thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
- Skewer rear
-
Bontrager Switch chamfered thru axle, removable lever
- Rim
-
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
- Spokes
-
14 g stainless steel, black
- Tyre
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tyre size
- 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
- Saddle
-
Verse Short Comp, steel rails, 145 mm width
- Seatpost
-
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

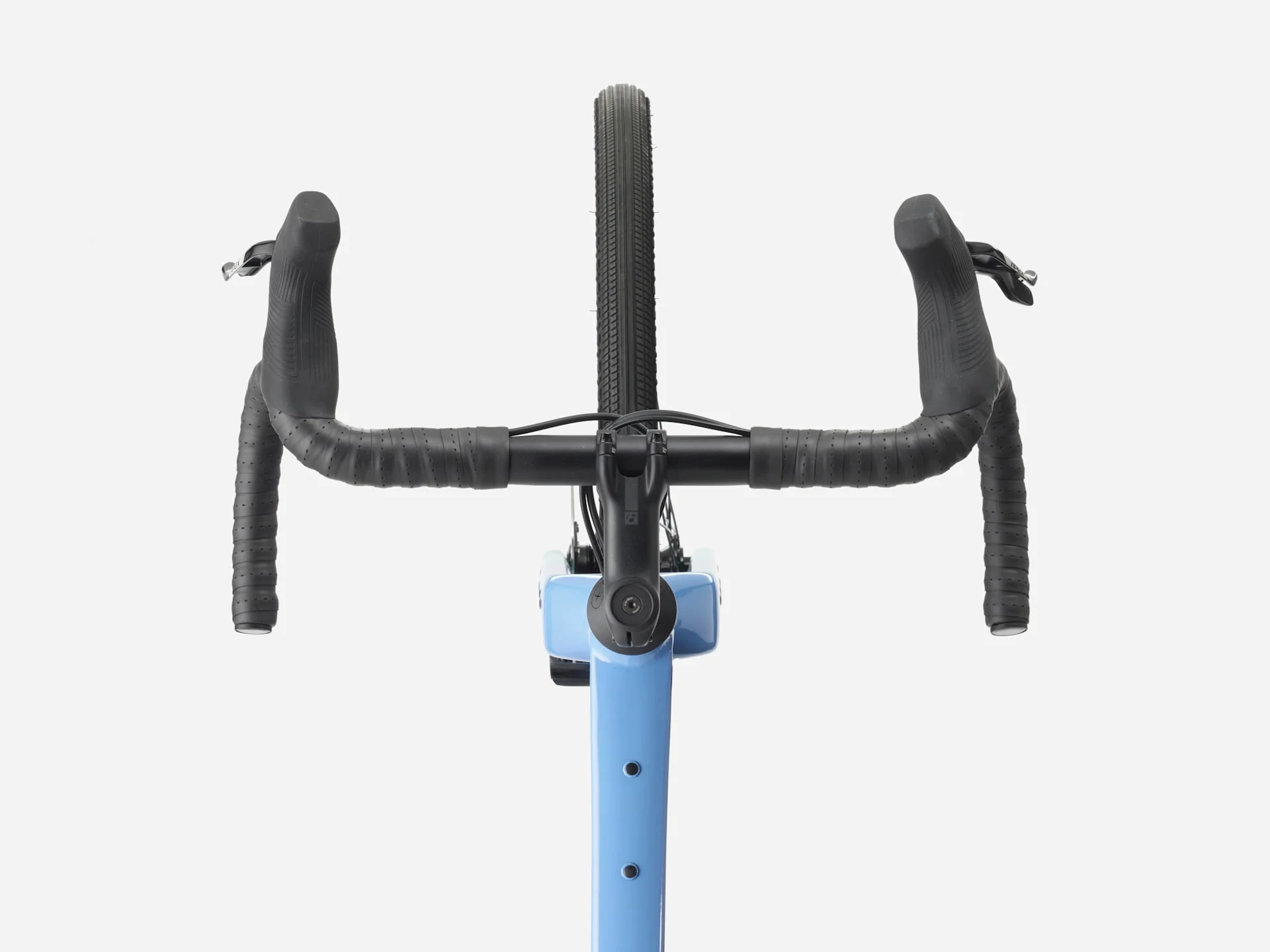

- *Handlebar
-
Size: XS, S
Bontrager Elite Gravel, alloy, 40 cm widthSize: M, ML
Bontrager Elite Gravel, alloy, 42 cm widthSize: L
Bontrager Elite Gravel, alloy, 44 cm widthSize: XL
Bontrager Elite Gravel, alloy, 46 cm width - Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: S, M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm lengthSize: ML, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm lengthSize: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length - Brake
-
SRAM Apex D1 hydraulic disc, flat mount
- Brake rotor
-
SRAM Paceline, rounded, CentreLock, 160 mm
- Brake lever
-
SRAM Apex, 12 speed
- Rotor size
- Max brake rotor sizes: 180 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
