2026 Trek CheckOUT SL 5 - Era White/Blue Sage
Discover the New Trek CheckOUT SL 5 — a gravel bike designed for speed, adventure and all-day exploration. Now available at South Africa’s Official Trek Bikes Online Store. Perfect for riders chasing new gravel roads, big miles and off-grid adventures, with free fast delivery nationwide.
OVERVIEW

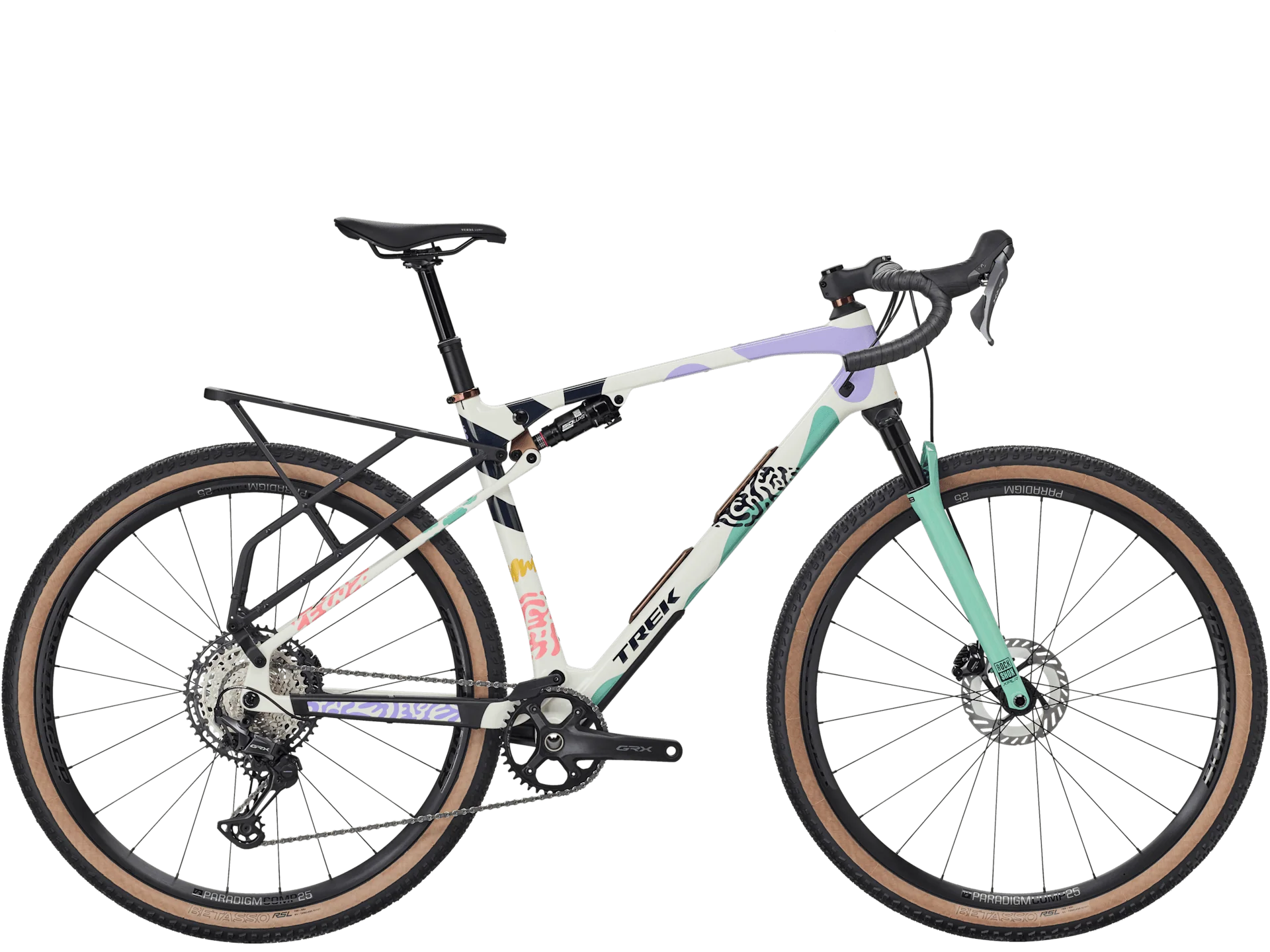

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.
SPECS
*Please note – spec applies to all sizes unless listed separately
- Frame
-
500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
- Fork
-
RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
- Shock
-
RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
- Weight
- ML - 12.74 kg / 28.09 lbs (with TLR sealant, no tubes, excluding rear rack)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Shifter
-
Shimano GRX RX820, 12-speed
- Rear derailleur
-
Shimano GRX RX822, 51T max cog
- *Crank
-
Size: S
Shimano GRX RX610, 38T, 160 mm lengthSize: M, ML
Shimano GRX RX610, 38T, 170 mm lengthSize: L, XL
Shimano GRX RX610, 38T, 172.5 mm length - Bottom bracket
-
Praxis, T47 threaded, internal bearing
- Cassette
-
Shimano XT M8200, 10-51, 12-speed
- Chain
-
Shimano XT M8100, 12-speed
- Max. chainring size
- 1x: 38T
- Wheel front
-
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Wheel rear
-
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
- Skewer rear
-
Bontrager Switch chamfered thru axle, removable lever
- Tyre
-
Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
Bontrager TLR
- Max tyre size
- 56 mm/2.20" (as measured, see manual for details)
- Saddle
-
Verse Short Comp, steel rails, 145 mm width
- Seatpost
-
TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
- *Handlebar
-
Size: S
Bontrager GR Checkout, 42 cmSize: M
Bontrager GR Checkout, 44 cmSize: ML, L
Bontrager GR Checkout, 46 cmSize: XL
Bontrager GR Checkout, 48 cm - Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: S, M
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 60mm lengthSize: ML, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Brake rotor
-
Shimano CL800, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front & rear
- Cargo rack
-
Checkout rear rack
